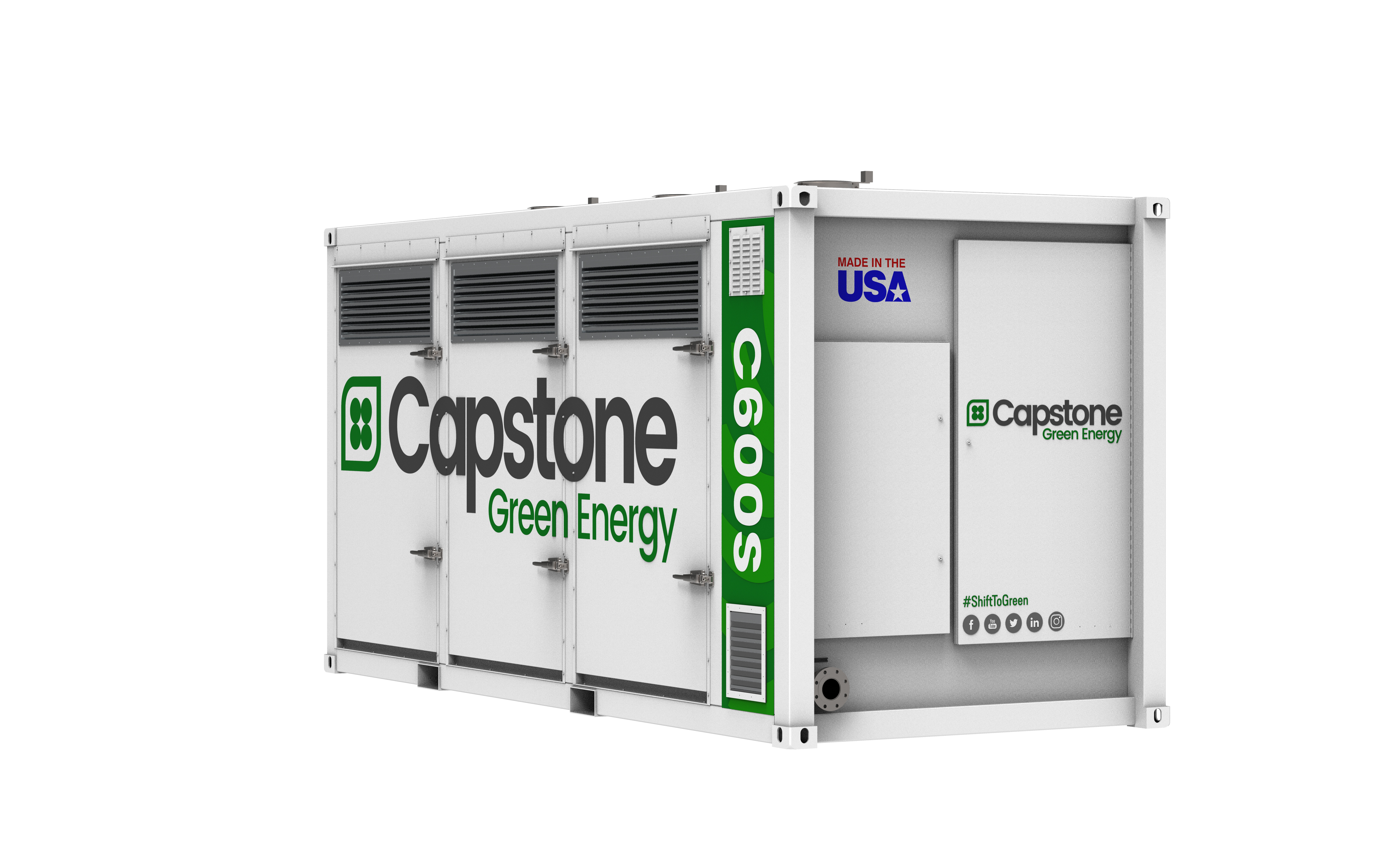

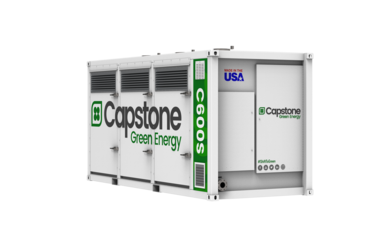

C600S
Expandable
Can be paralleled up to 30MW of power
Specifications
Rating:
600 kW
Electrical Efficiency LHV:
33%
Combined Heat And Power Efficiency::
Up to 90%
Voltage:
400-480 VAC
Frequency:
50/60 Hz, Grid Connect<br>10-60 Hz, Stand Alone
Electrical Service:
3-Phase, 4-Wire Wye
Width:
3.0 m (117 in)
Depth:
5.8 m (230 in)
Height:
2.9 m (114 in)
Weight:
Grid Connect – 11,250 kg (24,800 lbs); Dual Mode – 13,350 kg (29,400 lbs)
Net Heat Rate LHV:
10.9 MJ/kWh (10,300 BTU/kWh)
Exhaust Temperature:
280 ºC (535ºF)
Exhaust Gas Flow:
4.0 kg/s (8.8 lbm/s)
Compatible Fuels:
Natural Gas, Liquid Fuels (Ultra Low Sulfur Diesel #2), Biogas (Landfill, Digester), Associated Gas, Sour Gas, LPG
Data Sheets
C600S Digester Gas C600S High Pressure Natural Gas C600S High Pressure Sour Natural Gas C600S ICHP High Pressure Natural Gas C600S ICHP Liquid Petroleum Gas C600S ICHP Low Pressure Natural Gas C600S Landfill Gas C600S Liquid Fuels C600S Liquid Petroleum Gas C600S Low Pressure Natural GasNotes
- Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
- Height dimensions are to the roofline. Exhaust outlet can extend up to 5 inches above the roofline.
- Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
Specifications are not warrantied and are subject to change without notice.
