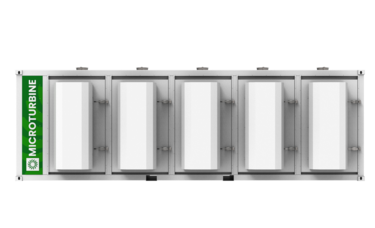

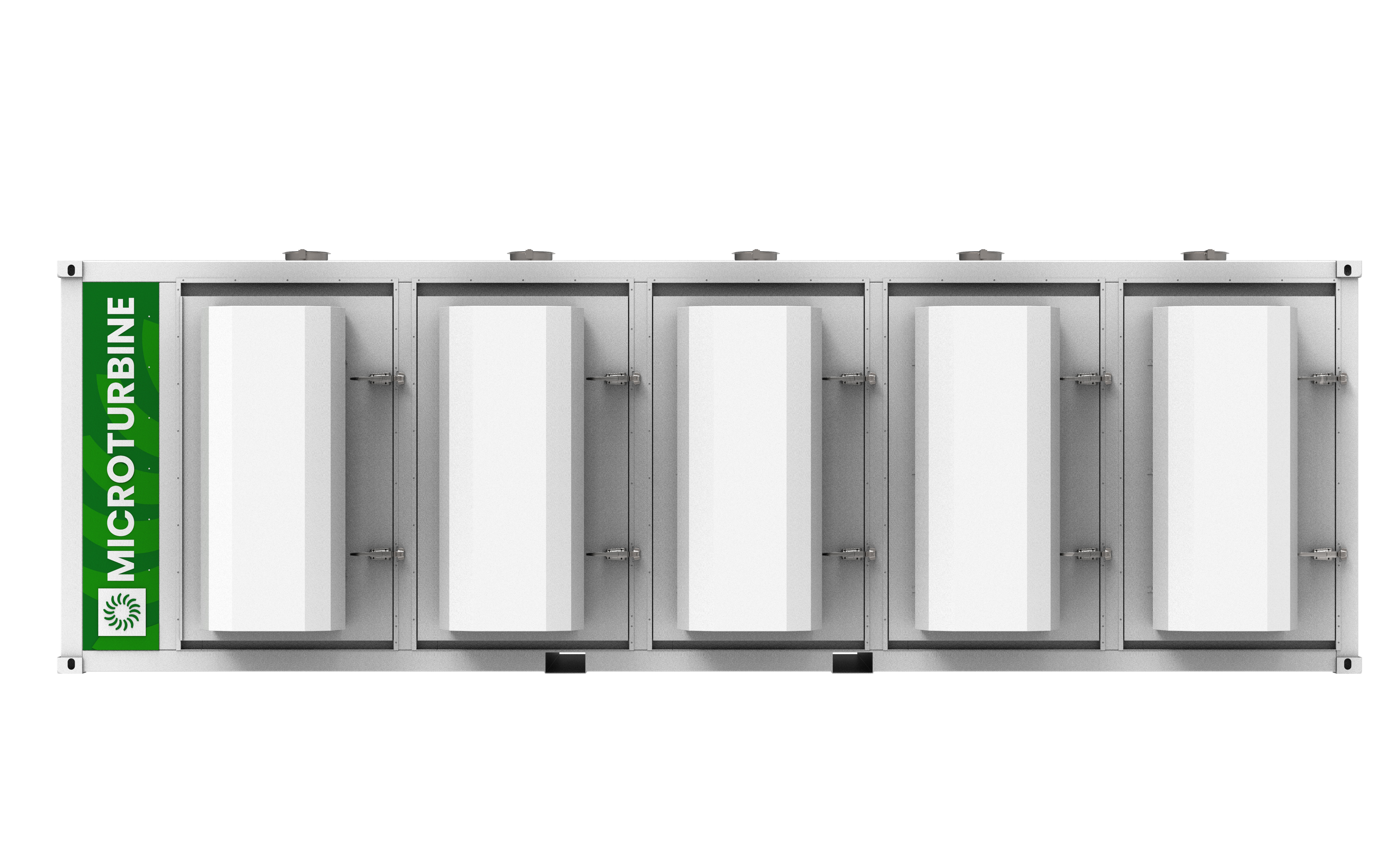

C1000S
Expandable
Can be paralleled up to 30MW of power
Specifications
Rating:
1,000 kW
Electrical Efficiency LHV:
33%
Combined Heat And Power Efficiency::
Up to 90%
Voltage:
400-480 VAC
Frequency:
50/60 Hz, Grid Connect<br>10-60 Hz, Stand Alone
Electrical Service:
3-Phase, 4-Wire Wye
Width:
3.0 m (117 in)
Depth:
9.1 m (360 in)
Height:
2.9 m (114 in)
Weight:
Grid Connect – 17,100 kg (37,700 lbs); Dual Mode – 20,650 kg (45,500 lbs)
Net Heat Rate LHV:
10.9 MJ/kWh (10,300 BTU/kWh)
Exhaust Temperature:
280 ºC (535ºF)
Exhaust Gas Flow:
6.7 kg/s (14.7 lbm/s)
Compatible Fuels:
Natural Gas, Liquid Fuels (Ultra Low Sulfur Diesel #2), Biogas (Landfill, Digester), Associated Gas, Sour Gas, LPG
Data Sheets
C1000S Digester Gas C1000S High Pressure Natural Gas C1000S High Pressure Sour Natural Gas C1000S ICHP High Pressure Natural Gas C1000S ICHP Liquid Petroleum Gas C1000S ICHP Low Pressure Natural Gas C1000S Landfill Gas C1000S LiquidFuels C1000S Liquid Petroleum Gas C1000S Low Pressure Natural GasNotes
- Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
- Height dimensions are to the roofline. Exhaust outlet can extend up to 5 inches above the roofline.
- Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
Specifications are not warrantied and are subject to change without notice.
